Datos del producto:
|
| Material: | 50Mn, 42CrMo | Garantía: | 5 años |
|---|---|---|---|
| OEM: | Disponible | Tipo de rotación: | Eje único |
| Color: | por requerimiento | Sitio de la instalación: | Techo y Campo |
| Característica: | Instalación rápida | Motor: | 12V/24/220V |
| Resaltar: | Single Worm Slew Drive Gearbox,230VAC Slew Drive Gearbox,Solar Tracking System Slew Gearbox |
||

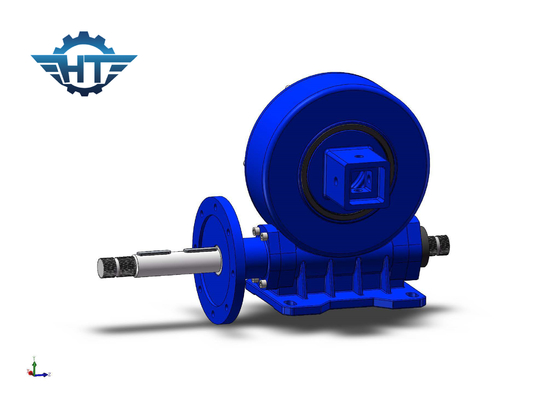

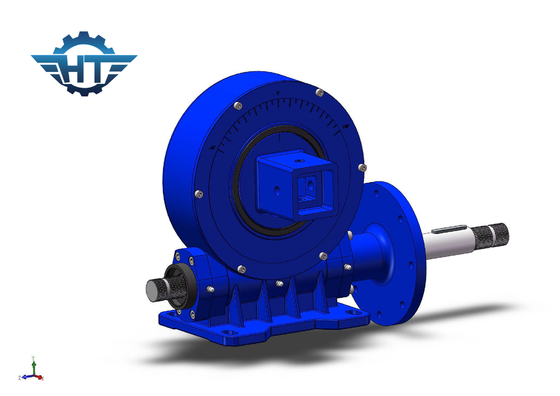

Vertical Single Worm Slew Drive Gearbox With 230 VAC Gear Motor For Solar Tracking System
Description
For slewing drive, there are 10 different sizes available from 1" to 25" with more than 60 models to meet both regular and precise tracking requirements in PV, CPV and solar thermal power tracking fields, antenna, satallite etc.
Hangtuo Mechnical Co., ltd is located in Changzhou City, just 20 mimutes from the City Shanghai, it is very convenient for you to visit our factory. We has strict quality control system in our own factory, meanwhile, we have passed ISO9001-2008 Quality System Certification and JG/T67-1991,JB/T2300-1999 with our country’s engineering & machinery standards.
Features
Easy intallation, they can be applied in multi-linkage to support the system in a stable movement.
Excellent in cost, and suitable for large scale PV plant.
Maintenance free design. Our slewing drive can effectively prevent the erosion caused by sand, dust, rain and snow.
Self-locking design. Our new designed self-locking slewing drive can make the whole system more safety in case of sudden occasions.
IP66, they are often used outdoors where exposure to moisture and significant contamination is possible.
Type of Slewing Drive
Vertical slewing drive, VE series
Horizontal slewing drive, SE series
Dual axis slewing drive. SDE series
Small backlash slewing drive, Z-series
Special Sevices
Slewing bearing design
Produce per your drawing
OEM service
Business Catagory
manufacturing and trading company
Advantages
1. ISO 9001:2008 Certificate, more than 10 years technical experience
2. High qualified material, MOQ, one piece, excellent quality, competitive price
3. Standard and non standard are both acceptable
4. Tailor making, 0EM available
5. Stronger loading capacity, huge radial and axial force capacity
6. Independent R&D team
7. Strict QA & QC management
8. Sufficient stock
9. Short lead time, fast delivery time
Warranty period: slewing drive, 5 years, gear motors, 1~5 years.
Packing Details: first lubricated, second circled with plastic film, kraft paper, then packed in wooden case and wrapped with steel belt.
Delivery time: for general product, only 5 days for goods in stock.For tailor making, negotiable
Application field: Mining machine, port hoisting machine, port oil transfer equipment onshoreand offshore crane, excavator, concrete machine, paper machinee, and rubber machine, weave machine,filling machine, steel plant, electronic power plant, wind power generator, other construction andindustry machine or equipment etc
VE Series Data Sheet
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
